電子數顯式扭力扳手(不帶棘輪頭)-730D
品牌：達威力Stahlwill
型號：730D
交貨期：45天
評分：★★★★★
支付：款到發貨
詢價

產品詳情

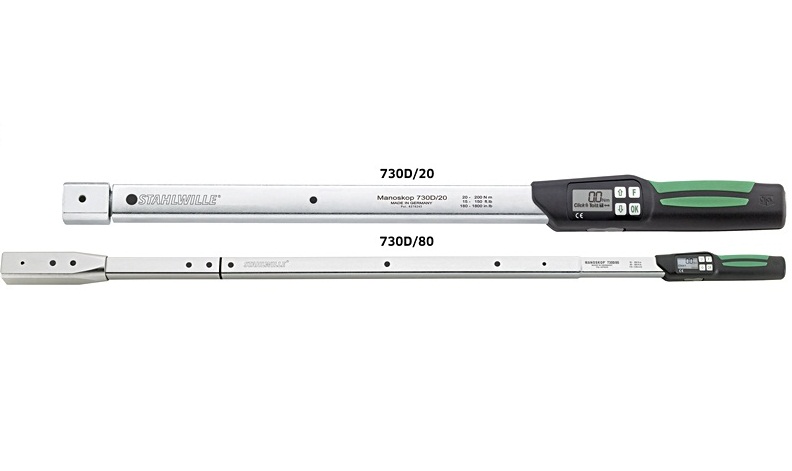

  730D - STAHLWILLE Basic wrenches with tool carrier for insert tools

•      達威力STAHLWILLE電子數顯扭力扳手-730D系列是當今唯一將機械扭矩扳手和電子模型結合起來。一旦連接件達到設定的扭矩值，就會自動切斷，并通過反作用力或聲音（滴答）等方式來提醒使用者。電子扭矩扳手使用起來和機械扳手相同。且扭矩的數據可以保存下來。并通過USB接口連接到計算機，再將數據傳輸出來。


      設置，顯示，存數和讀數全電子化控制。對于每一個連接都可設置公差，當扭矩到達設定值時，顯示器會變色。安裝不同的連接桿時，無需進行計算，扭矩扳手可自動調節。面板有自鎖功能，可防止不小心觸碰造成的數據更改。用戶可根據需要設定PIN密碼。扳手工具無需拆卸即可校正。絕對領先DIN EN ISO 6789標準的要求。





    產品特點：

•


Service work & series production MANOSKOP® - indicating and click-type

tactile and acoustic trigger signal

mount for interchangeable insert tools

QuickRelease safety lock

fast setting using convenient keypad

automatic compensation to achieve correct tightening torque even if a changed extension is entered

overload protection by means of acoustic and visual signals

automatic keypad lock prevents inadvertent changes

angle-controlled measurements without a reference arm using Angle Module No 7395-1

display also works for anticlockwise torque

units of measurement: N·m, ft·lb, in·lb

different tolerance limits can be set for each joint

visual red and green signals in the display confirm the status of the joint

additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code

up to 7,500 measurements can be stored

USB interface

automatic notification of the next calibration date

calibration using perfectControl calibrating unit No 7794 or calibration system No 7706

two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)

with certificate

in sturdy plastic case (sizes 40-100 in steel case)

patent

supplied with two 1.5 V AA batteries. AA/LR6, 1.2 V rechargeable cells may also be used

display deviation value ± 2%, ± 1 digit

code	size				Setting/display resolution	mm	b mm	h mm	L mm	LF mm	SF mm	g	g with box
96501710	10	10-100 N m	7,4-75 ft.lb	90-900 in.lb	0,2/0,1 N m; 0,2/0,1 ft.lb; 2/1,0 in.lb		28	23	467	426,5	17,5	1085	1510
96501720	20	20-200 N m	15-150 ft.lb	180-1800 in.lb	0,5/0,1 N m; 0,5/0,1 ft.lb; 5/1,0 in.lb		28	23	548	515	25	1361	1896
96501740	40	40-400 N m	30-300 ft.lb	360-3600 in.lb	1,0/0,1 N m; 1,0/0,1 ft.lb; 10/1,0 in.lb		28	23	688	655	25	1765	5155
96501765	65*	65-650 N m	48-480 ft.lb	580-5800 in.lb	1,0/0,1 N m; 1,0/0,1 ft.lb; 10/1,0 in.lb		30,6	25,6	870	837	25	3300	6000
96501965	II/65	65-650 N m	48-480 ft.lb	580-5800 in.lb	1,0/0,1 N m; 1,0/0,1 ft.lb; 10/1,0 in.lb		30,6	25,6	892	889	55	3224	6000
96502080	80	80-800 N m	60-600 ft.lb	720-7200 in.lb	1,0/1,0 N m; 1,0/1,0 ft.lb; 10/1,0 in.lb		30,6	25,6	1160	1157	55	4577	8667
96502100	100	100-1000 N m	74-750 ft.lb	900-9000 in.lb	1,0/1,0 N m; 1,0/1,0 ft.lb; 10/1,0 in.lb		30,6	25,6	1344	1341	55	4995	9085
* recommended ratchet insert tool No 735/40HD
